Product Description

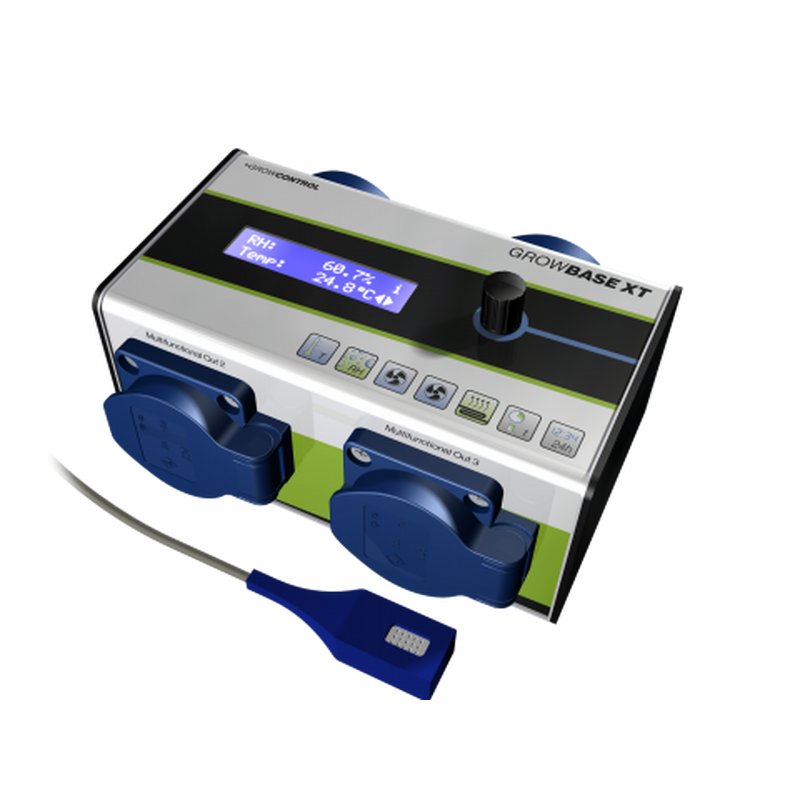

Multifunctional digital fan controller with timer functions and CO2 mode
GROW BASE XT is the control center for the ambitious indoor gardeners: The four outlets allow operation of many different devices, because they can be set to different functions. This high flexibility is guaranteed even under changing setups. In addition to the basic functions of the temperature and humidity control and the CO2 content can be controlled.
The air regulator maintains temperature and humidity in the grow room constant at the desired value. The Controller ensures a uniform negative pressure to prevent the escape of odors. In addition, timer functions (interval and 24) are available. One of the outlets can be loaded with up to 2,300 watts, which allows the connection of space heaters.
The air controller has four sockets, which are provided for connection of the following devices:
Supply air fan *
Exhaust fans *
lamps
humidifier
Dehumidifiers
irrigation pumps
Circulating fans
Electric Heaters
CO2 valves
Optional accessories:
CO₂-fitting
Made in Germany
Technical specifications
Dimensions (LxWxH) 170mm x 100mm x 90mm
Cable length sensor 5m
Cable length approx 1.4m
Main power supply 100-240V ~ 50Hz 8A
Power supply for Multi Out 3 100-240V ~ 50Hz 10A
Output exhaust, Multi Out 1, Out 2 Multi 600W @ 230V
Output Multi Out 3 2300W @ 230V
Protection / class IP54 / Insulation protection
Repeatability Sensor ± 0.1% RH / ± 0.2 ° C
Absolute sensor Accuracy ± 3% RH / ± 0.3 ° C
Adjustable range for humidity 35-95% RH
Adjustable range of temperature 10-50 ° C
Permissible operating temperature 10-40 ° C
